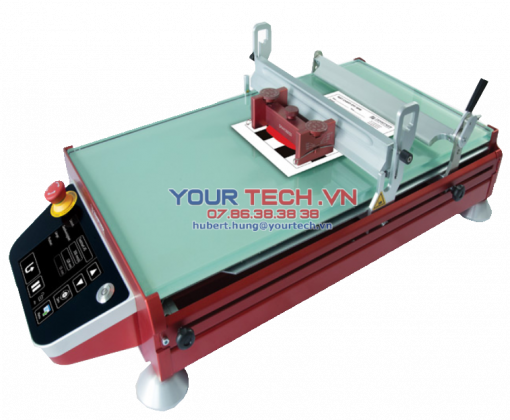

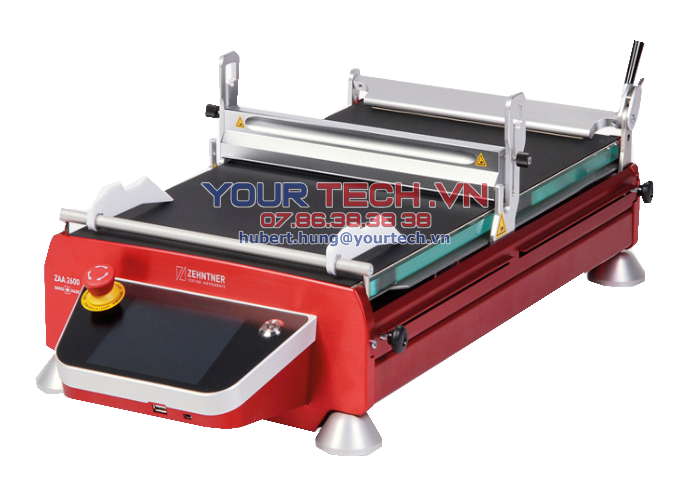

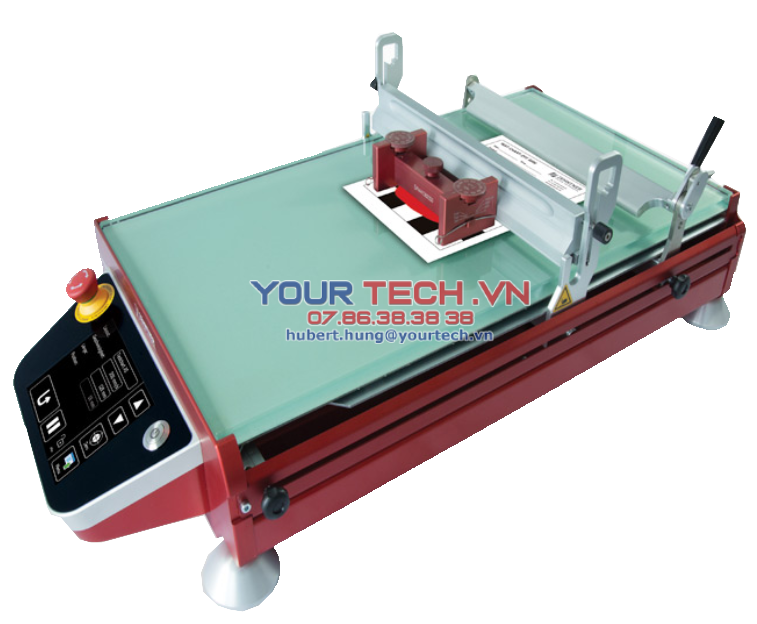

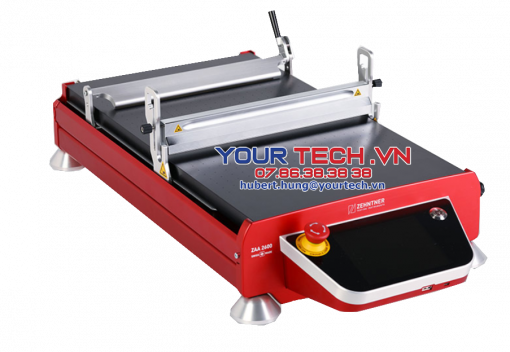

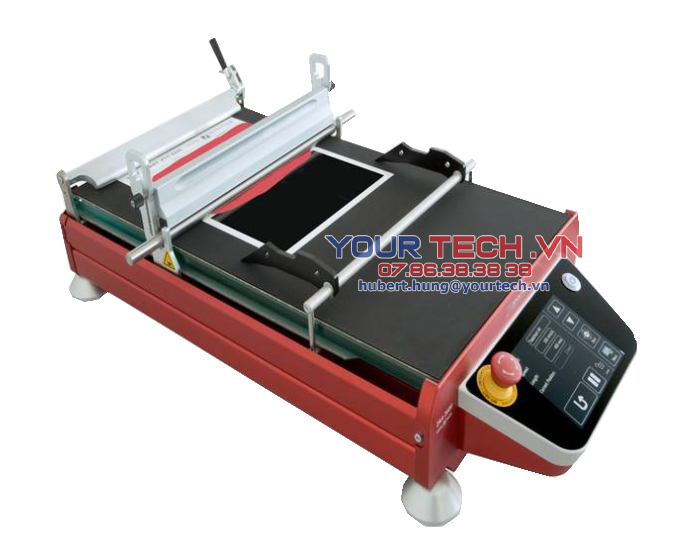

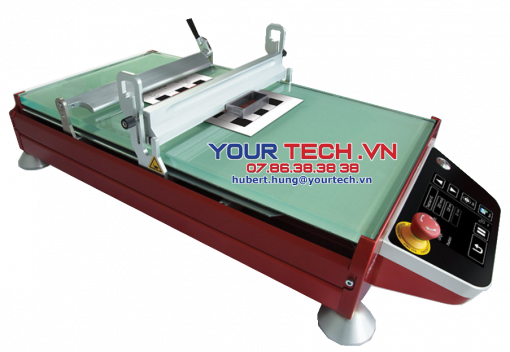

Proceq ZAA 2600.A Automatic Film Applicator

Proceq ZAA 2600.A Automatic Film Applicator

Automatic Film Applicator with Capacitive Touchscreen:

The ZAA 2600.A Automatic Film Applicator provides accurace and reproducible application of coating materials, adhesives and similar products with almost all film applicators. Thanks to its large scope of applications, the ZAA 2600.A is deplyable in a multitude of industries, such as the paint, varnish, paper, print, packaging, textile, food, building material, manufacturing and chemistry industry.

With easy to use multi-language guidance, the ZAA 2600.A will save you time in the laboratory. It also allows for storage of various application profile settings such as application length and drawing speed.

A universal unit with many possibilities:

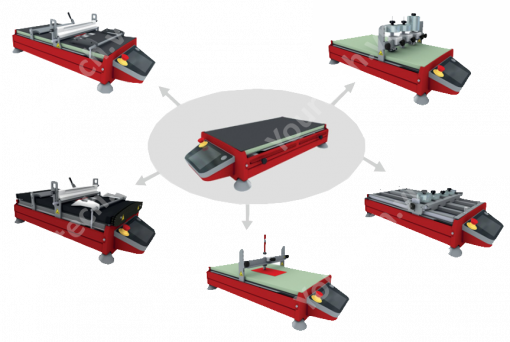

Thanks to its modular construction, the ZAA 2600 Automatic Universal Unit can be equipped with different kits for carrying out applications, scrub resistance, washability, crocking as well as scratch resistance tests.

We also carry a variety of applicators, so whether wire-bar, wedge-shaped, profiled or universal, you will find a suitable product for your requirements.

Overview:

• Multi-language menu guidance
• Reproducible, operator independent results
• Compact design saves counter space

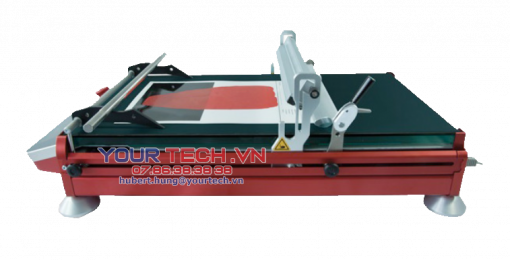

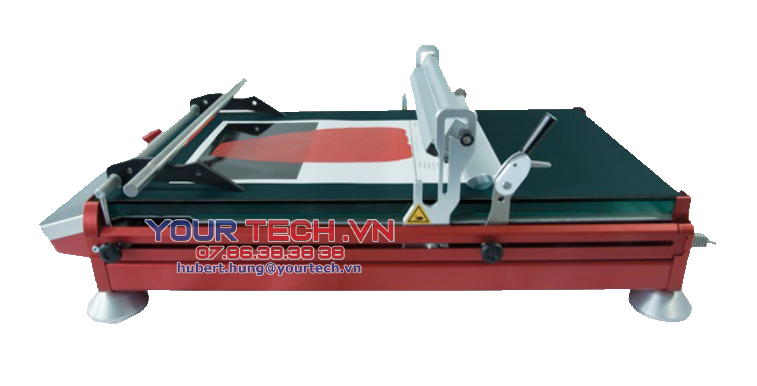

Applications:

• For use in the paint, varnish, adhesive and chemical industries
• Quality assessment
• Can be equipped for scrub tests
• Can be equipped for crocking tests
• Can be equipped for scratch resistance tests

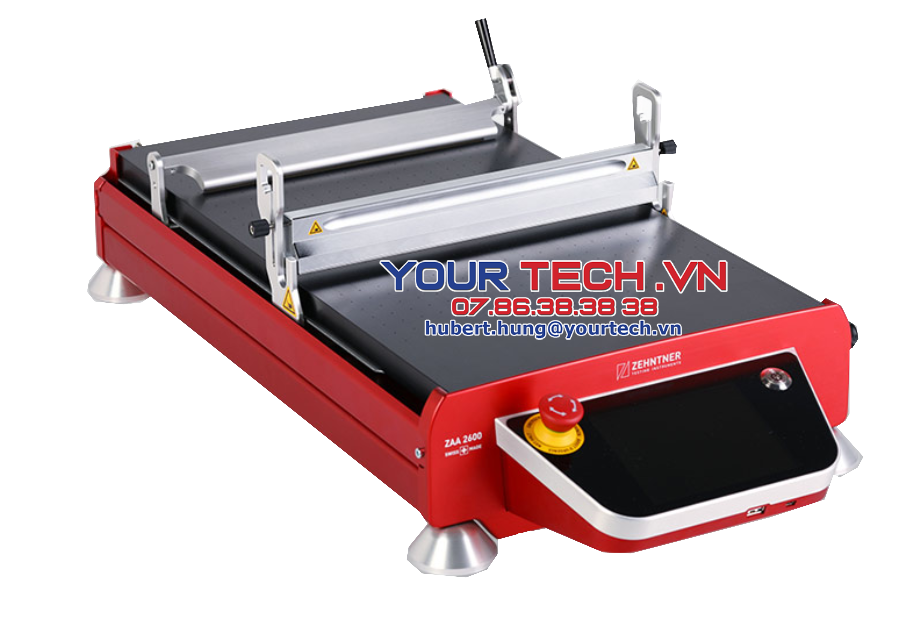

Features:

Display	Touchscreen 5.7″ colour TFT (LCD), LED backlight, VGA resolution
Measuring Area	Application length: up to 400 mm (15.75″) Application width: up to 300 mm (11.81″)
Weight	2600.A: ≈ 20 kg (≈ 44.1 lbs) glass plate only: 6.4 kg (14.1 lbs)
Battery	Power supply: 100 V – 240 V, 50 Hz – 60 Hz
Operating Temperature	Ambient conditions for the operation: Temperature range: 5°C to +45°C (41 °F to 113 °F) Relative humidity: 20% to 80%, no condensation
Special Features	Drawing speed: 1 – 500 mm/s (0.04 – 19.69“/s) Resolution: 1 mm/s (0.04”/s)

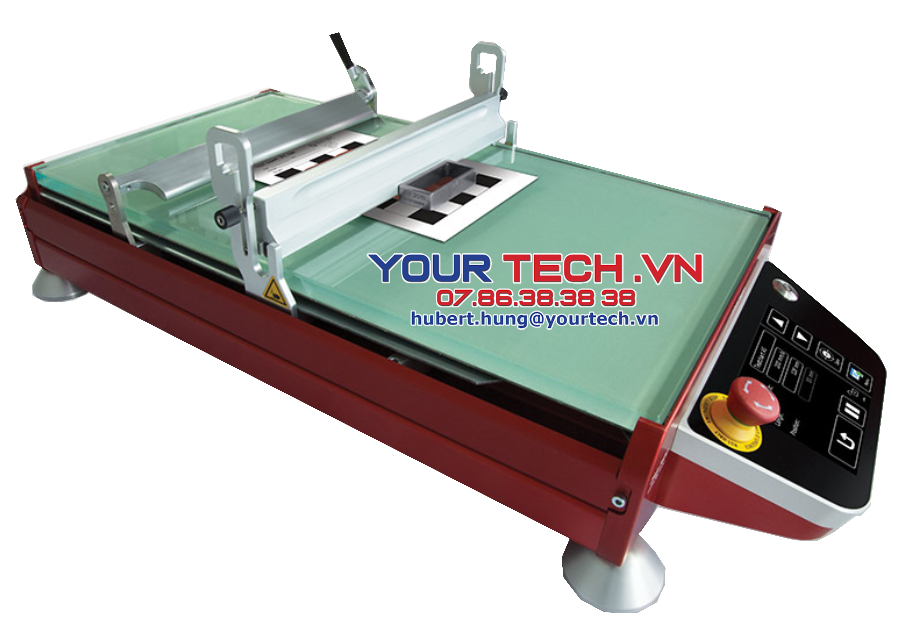

Standardization:

• ASTM D823 (depending on accessory)
• ASTM D1640 (depending on accessory)
• ASTM D6279
• ISO 11998 (depending on accessory)
