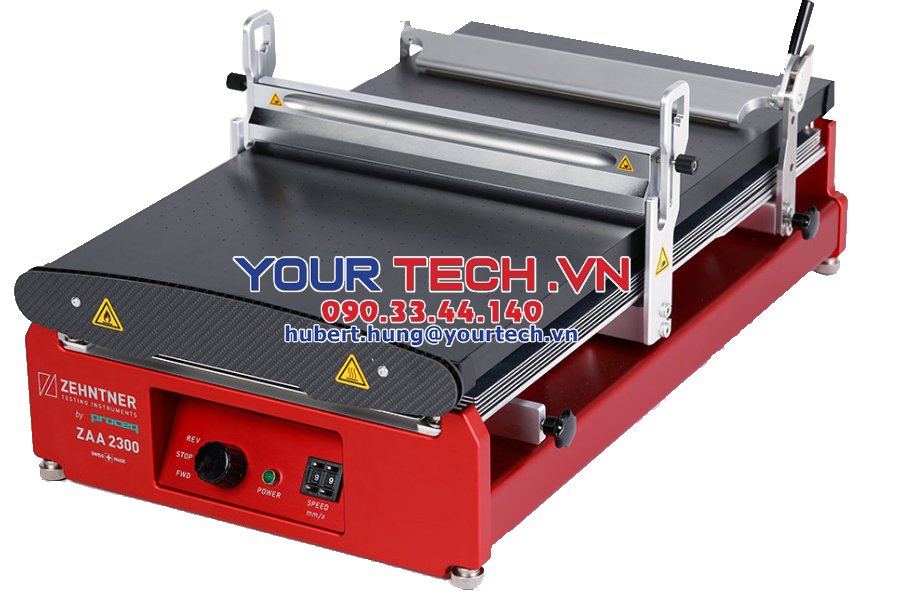

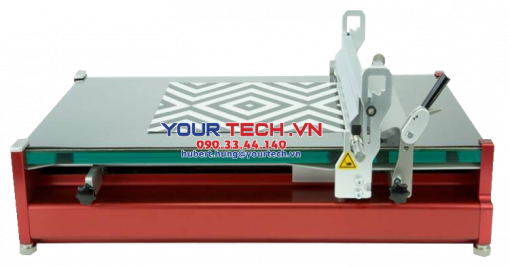

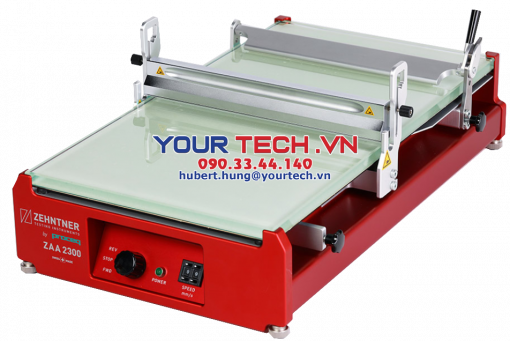

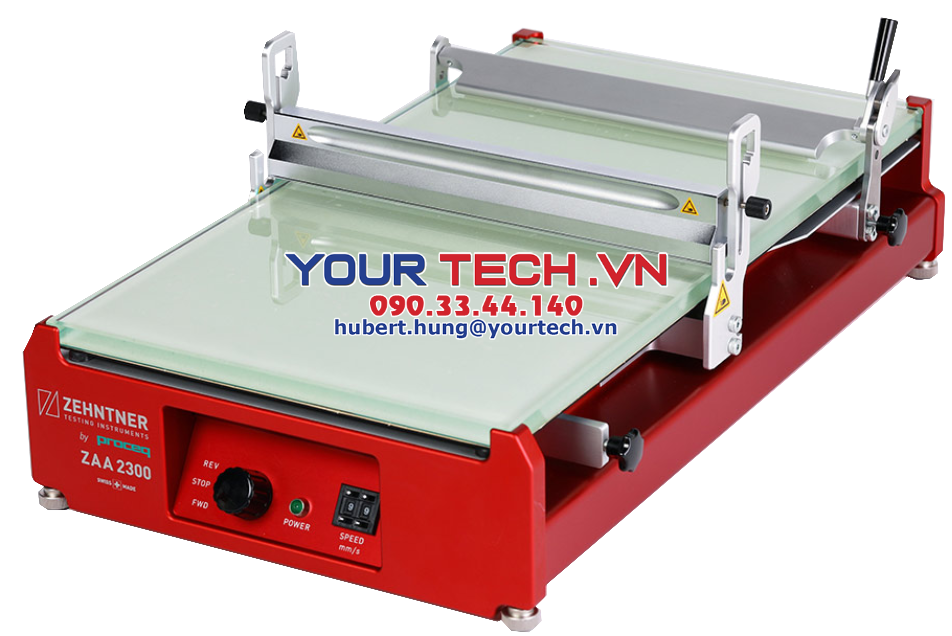

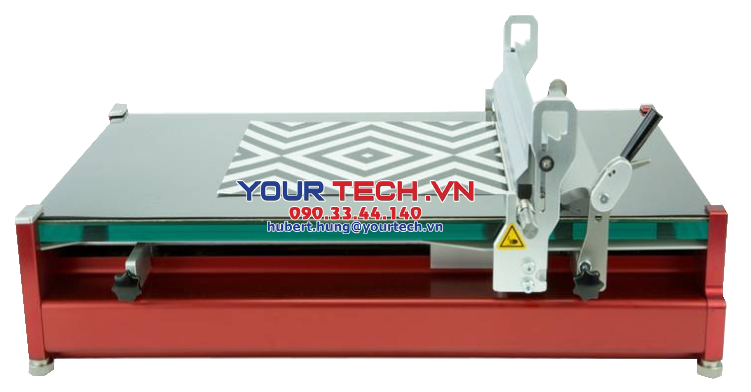

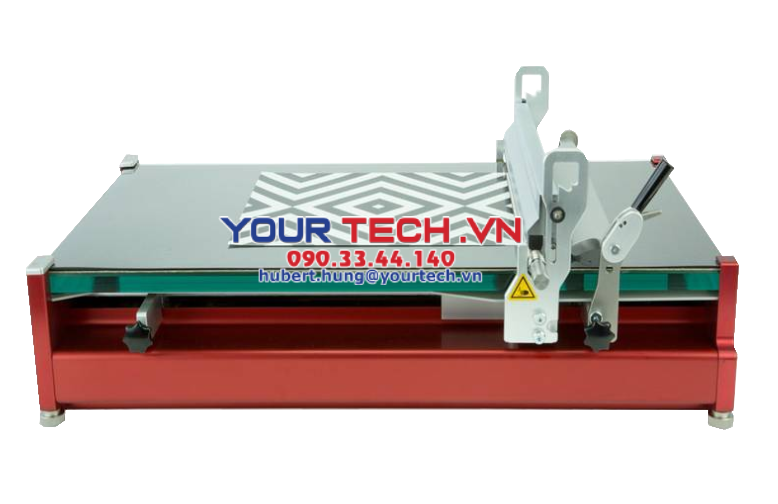

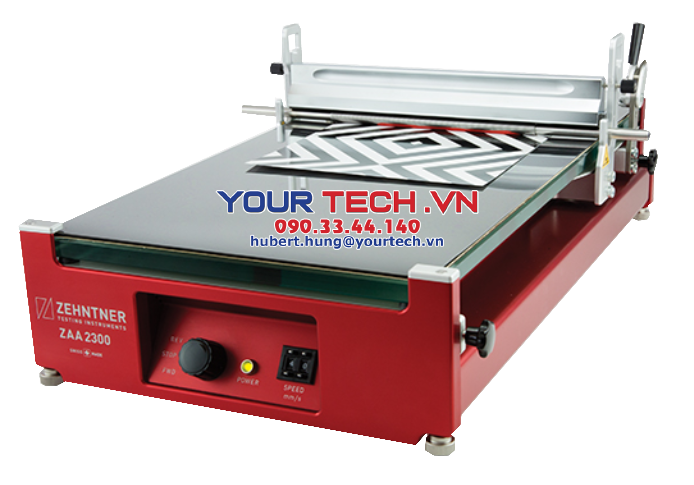

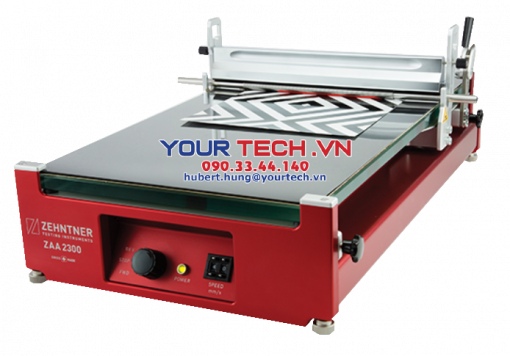

Proceq ZAA 2300 Automatic Film Applicator

Automatic film applicator:

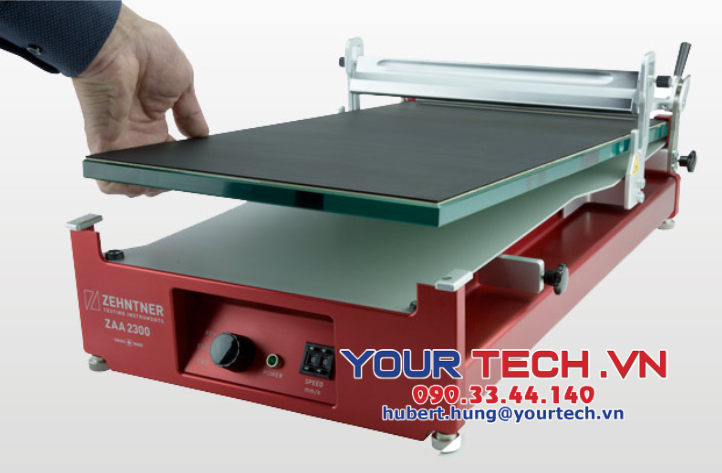

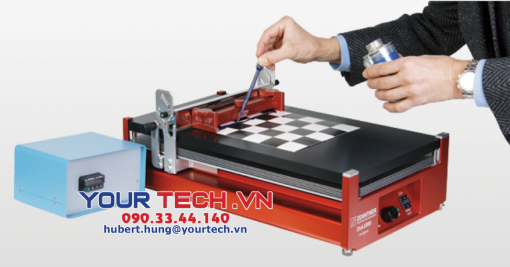

The Proceq ZAA 2300 Automatic Film Applicator provides accurate and reproducible application of coating materials, adhesives and similar products with almost all film applicators. The Proceq ZAA 2300 allows for multifunctional use with reversible, double sided glass plate that is easy to turn over or change.

Thanks to its large scope of applications, the Proceq ZAA 2300 is deployable in a multitude of industries, such as the paint, varnish, paper, print, packaging, textile, food, building material, manufacturing and chemistry industry.

Models:

• Proceq ZAA 2300-slow Automatic film applicator with:
• Drawing speed 1 – 99 mm/s (0.04 – 3.9″/s)
• Resolution 1 mm/s (0.04″/s)
• Proceq ZAA 2300-medium Automatic film applicator with:
• Drawing speed 2.5 – 247.5 mm/s (0.1 – 9.7″/s)
• Resolution 2.5 mm/s (0.1″/s)
• Proceq ZAA 2300-fast Automatic film applicator with:
• Drawing speed 5 – 495 mm/s (0.2 – 19.5″/s)
• Resolution 5 mm/s (0.2″/s)

We also carry a variety of applicators, so whether wire-bar, wedge-shaped, profiled or universal, you will find a suitable product for your requirements.

Overview:

• Easy to handle
• Reliable results
• Functional design

Applications:

• For use in the paint, varnish, adhesive and chemical industries
• Quality assessment

Features:

Display	Analog display
Battery Life	Power supply: 100 V – 240 V, 50 Hz – 60 Hz
Measuring Area	Application length: up to 400 mm (15.75″) Application width: up to 300 mm (11.81″)
Weight	20 kg (44.1 lbs) glass plate only: 6.4 kg (14.1 lbs)
Operating Temperature	Ambient conditions for the operation: Temperature range: 5°C to +45°C (41 °F to 113 °F) Relative humidity: 20% to 80%, no condensation
Special Features	Drawing speed: depending on version: either 1 – 99 mm/s, 2.5 – 247.5 mm/s or 5 – 495 mm/s Resolution: depending on version: either 1 mm/s, 2.5 mm/s or 5 mm/s

Standardization:

• ASTM D823 (depending on accessory)
• ASTM D1640 (depending on accessory)
• ISO 11998 (depending on accessory)

Accessories:

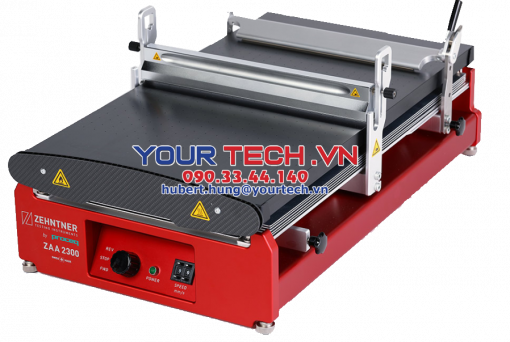

• Modification set “Heatable Application” (for options see specific version)
• Precision-Vacuumplate with a series of holes of 1 mm (0.04″)
• Precision-Vacuumplate with a series of holes of 0.5 mm (0.02″)
• Vacuum pump 230 V with hose
• Vacuum pump 115 V with hose
• Proceq ZUA 2000 Universal Applicator
• Proceq ZAF 2010 4-sided Applicator Frame
• Profile Rod
